Melee Trace

Documentation Unreal Engine AI Melee Combat

Frame-rate independent hit detection with swept traces and automatic damage application.

Frame-perfect hit detection that works at any frame rate. No more attacks passing through enemies.

Sub-stepping Visualizer

Interpolation OFF

Swing Speed60°

SIM_FPS: 10

STATUS: TUNNELING

Successful Hits

Without Interpolation: The fast sword swings 'teleport' over the target between frames, causing a miss.

When to Use This

Any game with melee combat (works for both AI and player characters)
Fast weapon swings that might miss at low framerates
Multiple hit zones on a single weapon (blade tip vs. hilt)
Configurable damage per weapon or attack

This system is completely standalone and works independently of the AI systems.

Core Concepts

The Problem

Traditional per-frame collision checks can miss:

Frame 1:  Sword ──→    [Enemy]
Frame 2:              [Enemy]   ←── Sword
                        ↑
          Sword passed through between frames!

At 30 FPS, a fast sword swing can teleport 50cm between frames, missing the target entirely.

The Solution: Swept Traces

The component remembers where the weapon was last frame and traces the entire path:

Frame 1 position ═══════════════► Frame 2 position
                   ↑
            Continuous trace catches the hit

This works identically at 30 FPS or 144 FPS.

Trace Sockets

Weapons define trace sockets, which are points along the weapon that are tracked:

                  ┌─────────────────┐
   Handle         │     BLADE       │         Tip
   [socket]───────┴─────────────────┴────────[socket]
     ↑                                          ↑
  blade_start                               blade_end

The component traces between these sockets, creating a swept volume that matches the weapon's swing.

Trace Shapes

Shape	Use Case	How It Works
Sphere	Blunt weapons	Single point with radius
Capsule	Short blades	Single point with capsule volume
CapsuleTwoPoint	Long blades	Capsule stretched between two sockets

For swords, use CapsuleTwoPoint with blade_start and blade_end sockets.

Quick Setup

1. Add Sockets to Weapon Mesh

In your weapon's skeletal/static mesh, add sockets:

blade_start: Base of the hitbox
blade_end: Tip of the hitbox

2. Create Weapon Blueprint

Inherit from ASECWeaponBase:

// In Class Defaults:
AttachSocket: "RightHandSocket"     // Socket on character skeleton
DefaultAttachOffset: (Transform)     // Offset after attachment

TraceSockets:
  - ID: "Blade"
    Shape: CapsuleTwoPoint
    SocketOrBoneName: "blade_start"
    EndSocketOrBoneName: "blade_end"
    Radius: 15.0
    TraceChannel: ECC_Pawn

DamageConfig: DA_SwordDamage        // Reference to damage data asset

3. Create Damage Config

Right-click → Data Asset → SECDamageConfig

BaseDamage: 25.0
DamageType: UDamageType_Physical
bCanBeBlocked: true
bCanBeParried: true
ImpulseStrength: 500.0

See Configuration Reference for all options.

4. Add Notify States to Animation

In your attack montage:

Right-click timeline at the start of the swing
Add Notify State → SECMeleeTraceWindow
Drag to cover the active swing frames
Configure: SocketIDs: ["Blade"]

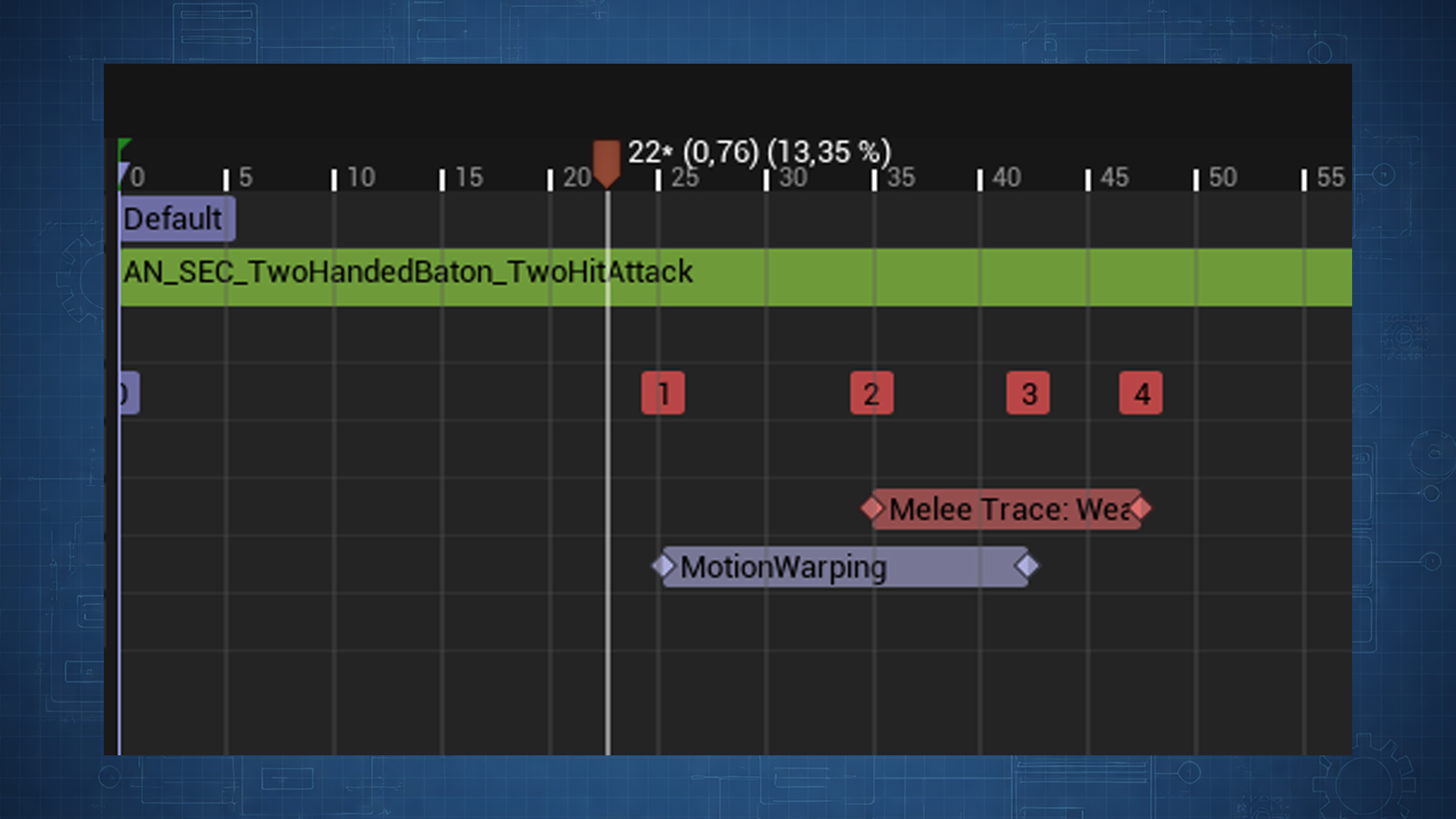

Animation montage with melee trace notify state

Timing guide:

Frame:     0    10    20    30    40    50
Animation: [━━━━][━━━━][━━━━][━━━━][━━━━]
           Windup Strike  Follow Recovery
                  ↑
Trace Window:    [═══════════]
                Start        End

5. Done!

When the weapon is equipped and the montage plays:

Weapon auto-registers its trace sockets with the character's MeleeTraceComponent
Notify state triggers tracing during active frames
Hits apply damage automatically via ApplyDamage

Key Properties

On Weapon (`ASECWeaponBase`)

Property	Purpose
`TraceSockets`	Array of socket definitions
`DamageConfig`	Data asset with damage values
`AttachSocket`	Character socket to attach to

On Character (`USECMeleeTraceComponent`)

Property	Default	Purpose
`DefaultDamageConfig`	-	Fallback if weapon has none
`BaseDamage`	10	Fallback damage
`HitResetInterval`	0.0	Time before same target can be hit again
`bDebugDraw`	false	Visualize traces

Key Functions

// Called automatically by weapon on equip
void RegisterWeaponTraceSockets(const TArray<FSECTraceSocket>& Sockets);

// Called by notify state
void StartTracing(const TArray<FName>& SocketIDs, UDamageConfig* Config, bool bDebug);
void StopTracing();

// Manual control (if not using notify states)
void BeginTrace(FName SocketID);
void EndTrace(FName SocketID);

// Events
FOnMeleeHit OnMeleeHit;  // Delegate when hit occurs

Advanced: Custom Damage Handling

If you don't want to use Unreal's built-in ApplyDamage, bind to the delegate:

MeleeTraceComponent->OnMeleeHit.AddDynamic(this, &AMyCharacter::HandleMeleeHit);

void AMyCharacter::HandleMeleeHit(const FHitResult& Hit, float Damage, UDamageConfig* Config)
{
    // Your custom damage logic
    IHealthInterface* Health = Cast<IHealthInterface>(Hit.GetActor());
    if (Health)
    {
        Health->TakeDamage(Damage, Config->bCanBeBlocked, Config->bCanBeParried);
    }
}

Debug Tools

Console Command:

SEC.Debug.Melee.DrawTracing 1   // Visualize swept traces

In Component:

MeleeTraceComponent->bDebugDraw = true;

This draws the trace volumes in real-time. Very useful for tuning socket positions and timing.

Common Issues

Problem	Cause	Solution
No hits registering	Socket ID mismatch	Verify notify `SocketIDs` matches weapon `TraceSockets.ID`
Hitting through walls	Wrong trace channel	Set `TraceChannel` to one that blocks geometry
Multiple hits per swing	`HitResetInterval` is 0	Set to 0.1+ to prevent rapid multi-hits
Weapon not tracing	Not equipped properly	Ensure `OnEquipped()` is called

Integration Points

When used with the full plugin, the melee trace integrates automatically. Weapons register on equip and animation notifies trigger tracing.

For standalone use (player characters, destructibles), just add USECMeleeTraceComponent to your actor and call StartTracing()/StopTracing() manually.

Melee traces are server-authoritative. The component only ticks on the server (authority check in TickComponent), so clients never run trace logic. Damage is applied server-side. Weapons replicate as actors, so they're visible on all clients. Hit reactions and damage feedback on clients should be driven by replicated health changes or Gameplay Cues.

See Multiplayer for the full replication overview.

Damage System (`ISECDamageable`)

The melee trace component fires OnMeleeHitResponse when it lands a hit. To get structured damage results (parried, blocked, immune, or applied), implement the ISECDamageable interface on the target actor.

Hit Flow

Step	What Happens
1	`OnMeleeTraceHit` fires with raw hit result
2	Your code builds `FSECDamageInfo` → calls `ISECDamageable::ProcessDamage()`
3	Damageable returns `FSECDamageResult` (outcome, final damage, response tag)
4	`OnMeleeHitResponse` fires with damage result + full execution context
5	AI reaction system evaluates based on the response tag

FSECDamageInfo

Field	Type	Description
`BaseDamage`	`float`	Raw damage before defense
`DamageType`	`FGameplayTag`	e.g. `SEC.Damage.Melee`, `SEC.Damage.Fire`
`Instigator`	`AActor*`	Who dealt the damage
`DamageSource`	`UObject*`	Weapon, ability, or projectile
`HitResult`	`FHitResult`	Impact point, normal, bone
`InstigatorTags`	`FGameplayTagContainer`	Snapshot of instigator's active tags

FSECDamageResult

Field	Type	Description
`Outcome`	`ESECDamageOutcome`	`Applied`, `Blocked`, `Parried`, `Immune`
`FinalDamage`	`float`	After defense calculation
`ResponseTag`	`FGameplayTag`	Tag for reaction evaluation
`bShouldReact`	`bool`	Whether the target should play a reaction

SkipRecordTags

The SkipRecordTags container on the melee trace component allows you to conditionally skip hit recording. If the damage result's ResponseTag matches any tag in SkipRecordTags, the hit is not recorded - meaning the same actor can be hit again on the next trace tick.

This is useful for parry windows: the defender parries, the attacker's weapon bounces off, but can potentially hit again after recovery.

Sense volume pattern

For reactions to projectiles or area tells, use a sense-detection volume on the AI and call EvaluateBestReaction() from its overlap event. The melee trace damage path is just one of many triggers - the reaction system is stimulus-agnostic.
